How Much Production Capacity of Wheat Mill Machinery Do You Like？

The 500T/24H refined wheat mill machinery below is specially designed according to the wheat which belongs to hard wheat type. This design adopts long technical flow in flour milling system, and equips 2 sets of 21 sets of MME25/100, 4 sets of MME25/125 auto-pneumatic roller mills to form the 5B.8M.3S.2T technology which is full-blown in Europe. ...

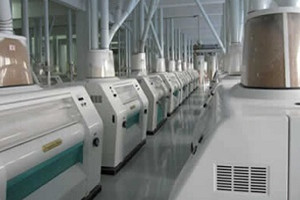

500TPD Wheat Mill Machinery

The 500T/24H refined wheat mill machinery below is specially designed according to the wheat which belongs to hard wheat type.

This design adopts long technical flow in flour milling system, and equips 2 sets of 21 sets of MME25/100, 4 sets of MME25/125 auto-pneumatic roller mills to form the 5B.8M.3S.2T technology which is full-blown in Europe. The 3rd B, 4th B and 5th B are classified by fineness and coarseness. The bran stock is dealt with bran scourer to shorten the B mills flow. Smooth roller is used in M mills, S mills and 1T, and combined with impact detacher to reduce the power of final grinding stages.

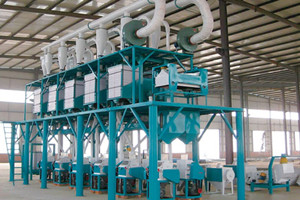

50TPD Wheat Mill Machinery
This design adopts the technical process of extracting flour from medium and long flour scheme in the milling workshop and 10 MMD25/100 pneumatic automatic roller mills to consist the 4B7M1S1T milling technique with 4 purifying and two bran scourings which is full blown in Europe. 4B has coarse and fine systems; bran pieces from upper section of plansifter is treated with bran scourer to shorten the process of break system. Middling system, semolina system and 1T system all adopt smooth rollers and combine with impact detacher to reduce the power of rear milling stage.

Roller’s contact length is 12.50mm/100Kg wheat•24h; sieving area is 0.088m2/100Kg wheat•24h; purifier’s unit sieve surface width is 1.84mm/100Kg wheat•24h.

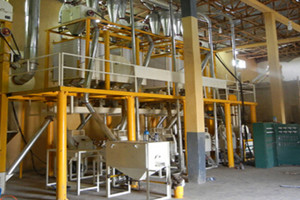

40TPD Ethiopia Wheat Mill Machinery
Primary Cleaning part: After going through elevating, sifting (remove big, small and light impurities), wheat is conveyed into Raw Material Storage Bin. Raw material reception capacity is 10T/H.
Cleaning Part:  three screens, two scours, one destoners , two magnetic separators, one wheat washer and one damping procedure. This technical process has good effect for cleaning. Cleaning capacity is 2T/H.
Milling Part: four break, three reduction,one scratch and one purifying. The technology is reasonable to produce wheat flour with high rate, whose capacity is 40T/D.
